There are different types of fittings available that help in changing the direction of flow of liquids. One of those piping components is elbow that is widely used in industries for changing the direction of liquids in pipes. There are different types and forms of fitting components available among which elbow is designed in two different types that are 90 deg and 45 deg radius. There are various industries where Forged 90° screwed-Threaded Elbow are mostly preferred due to its excellent features and performance.

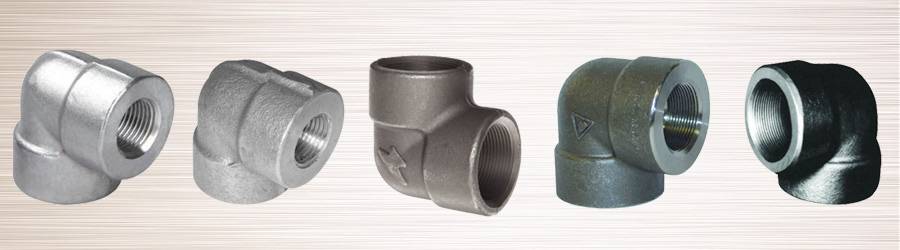

Forged 90° Screwed-threaded Elbow

These 90 degrees forged screwed and threaded elbow is mainly designed for changing the direction and reduce the size of the piping system. The screwed and threaded elbows are forged products that are mainly classified on the basis of pressure and temperature rating. These forged fittings components are available in different sizes and specifications as per the demand and requirement. The Forged 90° Screwed-Threaded Elbow is manufactured using best quality material that is available from the reputed market vendors.

Stainless Steel Forged Threaded 90° Elbow, Threaded 90 Deg Elbow, Threaded 90 Deg Elbow Suppliers, Threaded 90 Deg Elbow Exporters, Carbon Steel Forged 90° Screwed Elbow, Alloy Steel Threaded 90° Elbow Manufacturer.

These elbows are offered to customers in accordance with the domestic and global specifications and are examined as per the industrial standards. These fitting components are widely used in a wide range of industries and are owned due to their high quality as well as optimum performance. On the other hand, talking about the quality and features of these fitting components, they have various admirable features like perfect in dimension, thermal and rust resistance.

These fitting components offer some more features like high strength, excellent finishing, sturdy construction, accurate dimension, and oxidation resistance. The manufacturers are manufacturing this Forged 90 ° Screwed-Threaded Elbow using premium quality material as per the requirement and have lifelong service capability. These fittings components are checked under different parameters so as to ensure that they are completely defecting free, offering the best performance.

SS ASME / ANSI B 16.11 Forged 90° Screwed Elbow, Threaded 90 Deg Elbow Manufacturers, Threaded 90 Deg Elbow Stockists, Threaded 90 Deg Elbow Suppliers Dealers,ASTM A 182 Duplex Steel Forged Threaded 90° Elbow Supplier & Exporter.

The Forged 90° Screwed-Threaded Elbow is well inspected and tested by the qualified engineers and inspection agencies. There are different tests conducted to check the quality of these products. With it, these components are packed in the supreme quality of packaging material as it helps to prevent from rust and other unconditional damages until they are delivered to customers worldwide.

Hence, you can buy this forged screwed threaded elbow in different specifications and forms online.

Surya Steel & Alloys is a known manufacturer of Forged 90 Degree Screwed / Threaded Elbow, which have earned a spot in the industrial front as they have achieved a recognizable platform for themselves. Our organization is offering our clients a huge variety of Forged 90 Degree Screwed Elbow, which are designed and fabricated as per the international standards using a high-quality raw material. The production process of Forged 90 Degree Threaded Elbow is supervised by a team of highly skilled experts. Stainless Steel Forged 90 Degree Screwed Elbow is known for its Rust & thermal resistance, Perfect in dimension, Excellent finish, High strength, Sturdy construction, Accurate finish & dimension, and more. We are a well-known name for offering optimum Carbon Steel Forged 90 Degree Screwed Elbow to the clients, where our AIM is to satisfy the customer with quality & service as per their requirement and thus have a lifelong association.

The order delivery time is also quick to ensure that the clients get Carbon Steel Forged 90 Degree Threaded Elbow at the right time and at the right place. Moreover, the offered range of Alloy Steel Forged 90 Degree Screwed Elbow is suitably checked on varied parameters to ensure that these defect-free products are delivered at customers' premises. We bring forward for our clienteles in specifically engineered collection of Alloy Steel Forged 90 Degree Threaded Elbow that lies in sync by means of the acknowledged criterions of the industry.

Materials and Grade :

Specification : ASTM A182, ASTM SA182
Dimension : ANSI B 16.11
Size : 1/4" NB TO 4" NB
Class : 2000#, 3000#, 6000#, 9000#
Range : Coupling, Plug, Socket, Bushing, Elbow, Tee, Nipple, Union,Threading Outlet, Welding Outlet, Sockt Weld Outlet.
Stainless Steel Screwed-Threaded 90° Forged Elbow : ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Duplex Steel Screwed-Threaded 90° Forged Elbow : ASTM A 182 –F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 S 31803, S 32205, S 32550, S 32750, S 32760
Carbon Steel Screwed-Threaded 90° Forged Elbow : ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2
Alloy Steel Screwed-Threaded 90° Forged Elbow : ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.
Copper AlloysScrewed-Threaded 90° Forged Elbow : ASTM / ASME SB 111 UNS NO.C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500.
ASTM / ASME SB 466 UNS NO. C 70600 Cupro-Nickel 90/10 & Cupro-Nickel 70/30.
Nickel Alloy Screwed-Threaded 90° Forged Elbow : ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Forged 90° Screwed-Threaded Elbow Price List

S.NO Description Piping Material Class Qty PRICE IN US($)
1. 90° ELBOW: 2 NPS, ASTM A 105, NPT (F) THRD (ASME B1.20.1), CL3000#, GALV.TO A153, ASME B16.11 G01A 29 NOS  $36.00
2. 90° ELBOW: 1 NPS, ASTM A 105 , NPT (F) THRD (ASME B1.20.1), CL3000#, GALV.TO A153, ASME B16.11 G01A 21 NOS  $32.00
3. 90° ELBOW: 1/2 NPS, ASTM A 105, NPT (F) THRD (ASME B1.20.1), CL3000#, GALV.TO A153, ASME B16.11 G01A 21 NOS   $36.00

Forged 90° Screwed-Threaded Elbow Tolerance

90 Degree Threaded Elbow Tolerances
"A" - Threaded Center To BottomFor Size
1/8" And 1/4"
± 0.03"
3/8", 1/2" And 3/4"± 0.06"
1", 1-1/4", 1-1/2" And 2"± 0.08"
2-1/2", 3", And 4"± 0.10"
"B" - Threaded Bore DiameterFor Size
1-1/2" And Smaller
+ 0.020"
- 0.000"
2", 2-1/2", 3" And 4"+ 0.025"
- 0.000"
"C" - Threaded Wall Thick.Min. = 1.09 T (But Not Less Than 5/32")
T = Wall Thickness Of Nominal Pipe Sizes
"D" - Bore Diameter Of Pipe FittingFor Size
2" And Smaller
± 0.030"
2-1/2", 3" And 4"± 0.060"
"E" - Threadeds- Bottom To Bottom - Full CouplingsFor Size
1/8" And 1/4"
± 0.06"
3/8", 1/2" And 3/4"± 0.12"
1", 1-1/4", 1-1/2" And 2"± 0.16"
2-1/2", 3", And 4"± 0.20"
"F" - Bottom Of Threaded To Opposite Face - ANSI B16.11 Half CouplingsFor Size
1/8" And 1/4"
± 0.03"
3/8", 1/2" And 3/4"± 0.06"
1", 1-1/4", 1-1/2" And 2"± 0.08"
2-1/2", 3", And 4"± 0.10"
"G" - Gap Of WeldingApprox. 0.06"
Before Welding Recommended Gap
"H" - Min. FlatMin. Flat = 0.75 X Min.
Threaded Wall Thick.

Weight of Forged 90° Screwed-Threaded Elbow

Class 2000 NPS 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/16 4 5/16 5 3/4
F 3/4 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 2 1/16 2 1/2 3 1/8
Weight 0.188 0.236 0.435 0.740 1.058 1.375 1.740 2.883 7.750 11.313 19.125


Class 3000
1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 6
F 3/4 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 1 3/4 2 1/16 2 1/2 3 1/8
Wt 0.250 0.290 0.500 0.750 1.188 1.988 2.235 3.000 4.930 7.375 13.588 19.063


Class 6000
1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 1 1/6 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 5 3/4
F 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 1 3/4 2 1/16 2 1/2 3 1/8
Wt 0.250 0.640 0.500 1.438 2.188 2.785 4.688 5.750 9.500 15.000 30.563

Forged 90° Screwed-Threaded Elbow Pressure Rating

Pressure-Temperature for ASME B16.11 Elbow (psig)
Temperature Class
150 300
1/4 - 1 inch 1 1/4 - 2 inch 2 1/2 - 3 inch
(oF) (oC)
-20 to 150 -29 to 66 300 2000 1500 1000
200 93 265 1785 1350 910
250 121 225 1575 1200 825
300 149 185 1360 1050 735
350 177 150 1150 900 650
400 204 - 935 750 560
450 232 - 725 600 475
500 260 - 510 450 385
550 288 - 300 300 300

Forged 90° Screwed-threaded Elbow Dimensions

Forged 90° Screwed-threaded Elbow Dimensions

NPS 1/2 to 4 - 2000 LBS

NPS   Minimum Length
of Thread
Outside Diameter
of Band
Minimum
Wall Thickness
Center to End
B J D G 90°
A
45°
C
1/2 10.9 13.6 33 3.18 28 22
3/4 12.7 13.9 38 3.18 33 25
1 14.7 17.3 46 3.68 38 28
17 18 56 3.89 44 33
17.8 18.4 62 4.01 51 35
2 19 19.2 75 4.27 60 43
23.6 28.9 92 5.61 76 52
3 25.9 30.5 109 5.99 86 64
4 27.7 33 146 6.55 106 79

NPS 1/2 to 4 - 3000 LBS

NPS   Minimum Length
of Thread
Outside Diameter
of Band
Minimum
Wall Thickness
Center to End
B J D G 90°
A
45°
C
1/2 10.9 13.6 38 4.09 33 25
3/4 12.7 13.9 46 4.32 38 28
1 14.7 17.3 56 4.98 44 33
17 18 62 5.28 51 35
17.8 18.4 75 5.56 60 43
2 19 19.2 84 7.14 64 44
23.6 28.9 102 7.65 83 52
3 25.9 30.5 121 8.84 95 64
4 27.7 33 152 11.18 114 79

NPS 1/2 to 4 - 6000 LBS

NPS Minimum Length
of Thread
Outside Diameter
of Band
Minimum
Wall Thickness
Center to End
B J D G 90°
A
45°
C
1/2 10.9 13.6 46 8.15 38 28
3/4 12.7 13.9 56 8.53 44 33
1 14.7 17.3 62 9.93 51 35
17 18 75 10.59 60 43
17.8 18.4 84 11.07 64 44
2 19 19.2 102 12.09 83 52
23.6 28.9 121 15.29 95 64
3 25.9 30.5 146 16.64 106 79
4 27.7 33 152 18.67 114 79

Types of Forged 90° Screwed/Threaded Elbow :

» Forged 90 Deg Screwed / Threaded Elbow
» Stainless Steel Threaded 90° Elbow Exporter
» Duplex Steel Forged Screwed 90° Elbow
» Carbon Steel 90 Deg Forged Threaded Elbow
» Alloy Steel Screwed 90° Elbow Supplier
» Super Duplex Steel Threaded 90° Elbow
» Copper Alloy Steel Screwed 90° Elbow
» Nickel Alloy Forged Threaded 90° Elbow
» Monel Alloy Forged Screwed 90° Elbow Dealer
» SS A182 Class 6000 Lbs Threaded 90° Elbow
» ASME B16.11 Steel Forged Screwed 90° Elbow
» Hastelloy Forged Threaded 90° Elbow
» Inconel Screwed 90 Deg Elbow Distributor
» Titanium Forged Threaded 90° Elbow
» Incoloy Screwed 90° Elbow Manufacturer
» SS ANSI B16.11 Forged Threaded 90° Elbow
» BS3799 Forged Screwed 90° Elbow Stockiest
» Class 3000 Lbs SS Forged Threaded 90° Elbow
» SS ASTM A182 Forged Screwed 90° Elbow
» Class 2000 Lbs Threaded 90° Elbow Exporter
